Giải pháp của hãng TigerTMS

TigerTSM đã triển khai cho nhiều tập đoàn Hospitality lớn trên thế giới.

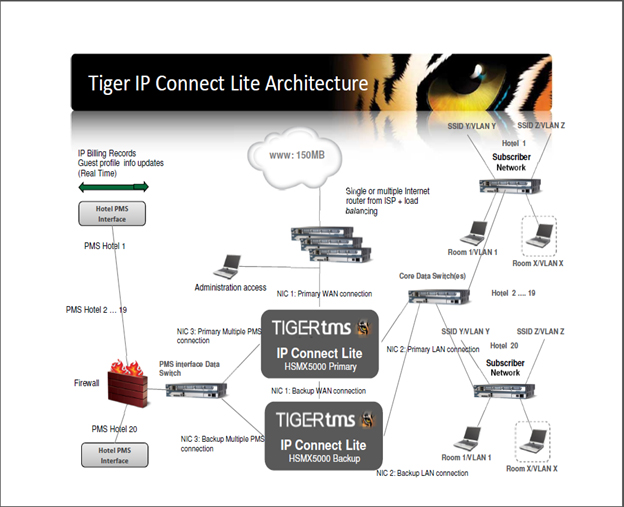

Sơ đồ giải pháp

Chức năng của giải pháp

Linux based, appliance solution that manages a single site or multi-property HSIA environment.

Bandwidth automatic management & optimisation guaranteeing conference & events internet quality of service.

Enhances the internet service billing capabilities of hotels and any other public service provide.

Interacts with iCharge product to obtain maximum flexibility in in-room service billing.

Interfaces to the most common PMS systems in order to obtain detailed guest profile authentication and to post internet access charges directly to the PMS.

Customisable portal page which allows authenticated access and “walled garden" With a choice of payment methods including PayPal and Credit Cards.

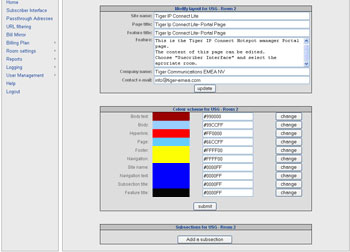

Portal Page Management

Allows creation of a custom portal for each room. You can use the portal of the Tiger IP Connect Lite or design your own portal.

Revenue Reports

Revenue reports can be generated based on rooms floors or guest types.

Login / Logout

User login through the portal and can logout with a complete customisable logout console.

Billing Plan Management

Time based, volume based or time and volume based billing plan’s can be created. This gives you all the flexibility you need to bill your customers. You can define billing plans for floors, guest types or for separate room numbers.

Traffic Shaping

Traffic Prioritization
Bandwidth Allocation & Bandwidth Restriction
Cross Subscriber Network
Multu Traffic Shaping Rule Levels
Traffic Shaping Rules Linked to User/Guest Profiles
OSI Layer 7 Traffic Shaping Rules
OSI Layer 2 Traffic Shaping Rules
User/Guest Usage Indication
Cross WAN usage


Tiger IP Connect Lite includes a syslog server that keeps track of the syslog and AAA log messages. The subscriber activity is also logged. You can see when a subscriber was online.

User Management

Creation of users based on the defined billing plans. You can limit bandwidth, manage time and volume and give the subscriber a public IP. You can create vouchers based on the billing plans. The layout of the vouchers can be changed to the format you need and even include your logo.

Room / Port Management

Ports can be opened or closed plus meeting rooms scheduled. Rooms can be attached to floors or guest types. This can be used later on for revenue reports.

Cam kết của GENEX

Đội ngũ có kinh nghiệm trên 2+ năm triển khai giải pháp này cho khách hàng tại Việt Nam.

Cung cấp dịch vụ tư vấn, triển khai, bàn giao chuyên nghiệp.

Cung cấp dịch vụ bảo trì, bảo dưỡng hệ thống Internet Billing 24/7.
